Fresa per sedi per chiavette con dente sfalsato a gambo lungo
Codice componente
Qui sono indicati i codici componente
correlati al prodotto ricercato
| Codice componente |
Prezzo unitario standard

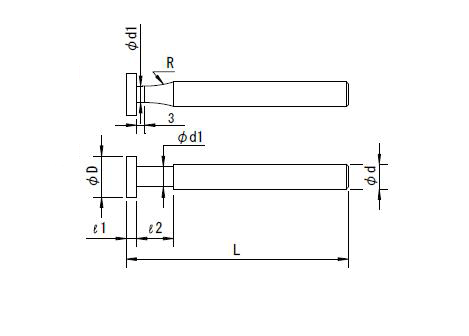

| Quantità minima d'ordine | Sconto volumi elevati | blade diameter (mm) | Blade thickness (mm) | Neck diameter (mm) | Neck length (mm) | Overall Length (mm) | shank diameter (mm) | Number of flutes | Blade diameter tolerance | Blade thickness tolerance | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
133.18 € | 1 | 6 giorni | 10 | 1 | 4.2 | 8.8 | 80 | 8 | 6 | +0.18～+0.3 | -0.014～-0.028 | ||
133.18 € | 1 | 6 giorni | 10 | 2 | 4.2 | 8.8 | 80 | 8 | 6 | +0.18～+0.3 | -0.014～-0.028 | ||
133.18 € | 1 | 6 giorni | 10 | 3 | 4.2 | 8.8 | 80 | 8 | 6 | +0.18～+0.3 | -0.014～-0.028 | ||
102.14 € | 1 | 6 giorni | 12 | 1 | 4.4 | 10 | 80 | 10 | 6 | +0.18～+0.3 | -0.014～-0.028 | ||
102.14 € | 1 | 6 giorni | 12 | 2 | 4.4 | 10 | 80 | 10 | 6 | +0.18～+0.3 | -0.014～-0.028 | ||
102.15 € | 1 | 6 giorni | 12 | 3 | 4.4 | 10 | 80 | 10 | 6 | +0.18～+0.3 | -0.014～-0.028 | ||
102.15 € | 1 | 6 giorni | 12 | 4 | 4.4 | 10 | 80 | 10 | 6 | +0.18～+0.3 | -0.02～-0.038 | ||
102.14 € | 1 | 6 giorni | 13 | 1 | 4.4 | 10 | 80 | 10 | 6 | +0.18～+0.3 | -0.014～-0.028 | ||
102.15 € | 1 | 6 giorni | 13 | 2 | 4.4 | 10 | 80 | 10 | 6 | +0.18～+0.3 | -0.014～-0.028 | ||
102.15 € | 1 | 6 giorni | 13 | 3 | 4.4 | 10 | 80 | 10 | 6 | +0.18～+0.3 | -0.014～-0.028 | ||
102.15 € | 1 | 6 giorni | 13 | 4 | 4.4 | 10 | 80 | 10 | 6 | +0.18～+0.3 | -0.02～-0.038 | ||
106.34 € | 1 | 6 giorni | 15 | 1 | 4.7 | 10.8 | 80 | 10 | 6 | +0.18～+0.3 | -0.014～-0.028 | ||
106.34 € | 1 | 6 giorni | 15 | 2 | 4.7 | 10.8 | 80 | 10 | 6 | +0.18～+0.3 | -0.014～-0.028 | ||
106.35 € | 1 | 6 giorni | 15 | 3 | 4.7 | 10.8 | 80 | 10 | 6 | +0.18～+0.3 | -0.014～-0.028 | ||
106.35 € | 1 | 6 giorni | 15 | 4 | 4.7 | 10.8 | 80 | 10 | 6 | +0.18～+0.3 | -0.02～-0.038 | ||
106.36 € | 1 | 6 giorni | 15 | 5 | 4.7 | 10.8 | 80 | 10 | 6 | +0.18～+0.3 | -0.02～-0.038 | ||
113.80 € | 1 | 6 giorni | 16 | 1 | 5 | 11.8 | 100 | 12 | 6 | +0.18～+0.3 | -0.014～-0.028 | ||
113.80 € | 1 | 6 giorni | 16 | 2 | 5 | 11.8 | 100 | 12 | 6 | +0.18～+0.3 | -0.014～-0.028 | ||
113.81 € | 1 | 6 giorni | 16 | 3 | 5 | 11.8 | 100 | 12 | 6 | +0.18～+0.3 | -0.014～-0.028 | ||
113.81 € | 1 | 6 giorni | 16 | 4 | 5 | 11.8 | 100 | 12 | 6 | +0.18～+0.3 | -0.02～-0.038 | ||
113.82 € | 1 | 6 giorni | 16 | 5 | 5 | 11.8 | 100 | 12 | 6 | +0.18～+0.3 | -0.02～-0.038 | ||
114.39 € | 1 | 6 giorni | 18 | 1 | 7 | 12.6 | 100 | 12 | 8 | +0.21～+0.35 | -0.014～-0.028 | ||
114.41 € | 1 | 6 giorni | 18 | 2 | 7 | 12.6 | 100 | 12 | 8 | +0.21～+0.35 | -0.014～-0.028 | ||
114.42 € | 1 | 6 giorni | 18 | 3 | 7 | 12.6 | 100 | 12 | 8 | +0.21～+0.35 | -0.014～-0.028 | ||
114.43 € | 1 | 6 giorni | 18 | 4 | 7 | 12.6 | 100 | 12 | 8 | +0.21～+0.35 | -0.02～-0.038 | ||
114.43 € | 1 | 6 giorni | 18 | 5 | 7 | 12.6 | 100 | 12 | 8 | +0.21～+0.35 | -0.02～-0.038 | ||
122.31 € | 1 | 6 giorni | 20 | 1 | 8 | 11.7 | 120 | 12 | 8 | +0.21～+0.35 | -0.014～-0.028 | ||
122.32 € | 1 | 6 giorni | 20 | 2 | 8 | 11.7 | 120 | 12 | 8 | +0.21～+0.35 | -0.014～-0.028 | ||
122.33 € | 1 | 6 giorni | 20 | 3 | 8 | 11.7 | 120 | 12 | 8 | +0.21～+0.35 | -0.014～-0.028 | ||
122.34 € | 1 | 6 giorni | 20 | 4 | 8 | 11.7 | 120 | 12 | 8 | +0.21～+0.35 | -0.02～-0.038 | ||
122.35 € | 1 | 6 giorni | 20 | 5 | 8 | 11.7 | 120 | 12 | 8 | +0.21～+0.35 | -0.02～-0.038 | ||
144.48 € | 1 | 6 giorni | 25 | 1 | 10 | 12 | 120 | 12 | 8 | +0.21～+0.35 | -0.014～-0.028 | ||
144.50 € | 1 | 6 giorni | 25 | 2 | 10 | 12 | 120 | 12 | 8 | +0.21～+0.35 | -0.014～-0.028 | ||
144.52 € | 1 | 6 giorni | 25 | 3 | 10 | 12 | 120 | 12 | 8 | +0.21～+0.35 | -0.014～-0.028 | ||
144.54 € | 1 | 6 giorni | 25 | 4 | 10 | 12 | 120 | 12 | 8 | +0.21～+0.35 | -0.02～-0.038 | ||
144.56 € | 1 | 6 giorni | 25 | 5 | 10 | 12 | 120 | 12 | 8 | +0.21～+0.35 | -0.02～-0.038 | ||
212.46 € | 1 | 6 giorni | 30 | 1 | 12 | 29 | 150 | 16 | 10 | +0.26～+0.43 | -0.014～-0.028 | ||
212.48 € | 1 | 6 giorni | 30 | 2 | 12 | 28 | 150 | 16 | 10 | +0.26～+0.43 | -0.014～-0.028 | ||
212.51 € | 1 | 6 giorni | 30 | 3 | 12 | 27 | 150 | 16 | 10 | +0.26～+0.43 | -0.014～-0.028 | ||
212.55 € | 1 | 6 giorni | 30 | 4 | 12 | 26 | 150 | 16 | 10 | +0.26～+0.43 | -0.02～-0.038 | ||
212.57 € | 1 | 6 giorni | 30 | 5 | 12 | 25 | 150 | 16 | 10 | +0.26～+0.43 | -0.02～-0.038 | ||
288.52 € | 1 | 6 giorni | 35 | 1 | 14 | 29 | 150 | 16 | 10 | +0.26～+0.43 | -0.014～-0.028 | ||
288.56 € | 1 | 6 giorni | 35 | 2 | 14 | 28 | 150 | 16 | 10 | +0.26～+0.43 | -0.014～-0.028 | ||
288.61 € | 1 | 6 giorni | 35 | 3 | 14 | 27 | 150 | 16 | 10 | +0.26～+0.43 | -0.014～-0.028 | ||
288.65 € | 1 | 6 giorni | 35 | 4 | 14 | 26 | 150 | 16 | 10 | +0.26～+0.43 | -0.02～-0.038 | ||
288.69 € | 1 | 6 giorni | 35 | 5 | 14 | 25 | 150 | 16 | 10 | +0.26～+0.43 | -0.02～-0.038 | ||
374.83 € | 1 | 6 giorni | 40 | 2 | 14 | 28 | 150 | 16 | 12 | +0.26～+0.43 | -0.014～-0.028 | ||
374.90 € | 1 | 6 giorni | 40 | 3 | 14 | 27 | 150 | 16 | 12 | +0.26～+0.43 | -0.014～-0.028 | ||
374.95 € | 1 | 6 giorni | 40 | 4 | 14 | 26 | 150 | 16 | 12 | +0.26～+0.43 | -0.02～-0.038 | ||
375.01 € | 1 | 6 giorni | 40 | 5 | 14 | 25 | 150 | 16 | 12 | +0.26～+0.43 | -0.02～-0.038 | ||
631.82 € | 1 | 6 giorni | 50 | 2 | 14 | 28 | 150 | 16 | 12 | +0.3～+0.5 | -0.014～-0.028 | ||
631.92 € | 1 | 6 giorni | 50 | 3 | 14 | 27 | 150 | 16 | 12 | +0.3～+0.5 | -0.014～-0.028 | ||
632.02 € | 1 | 6 giorni | 50 | 4 | 14 | 26 | 150 | 16 | 12 | +0.3～+0.5 | -0.02～-0.038 | ||
632.12 € | 1 | 6 giorni | 50 | 5 | 14 | 25 | 150 | 16 | 12 | +0.3～+0.5 | -0.02～-0.038 |
Loading...
Informazioni di base
| Material | High-speed steel | blade shape | Right blade alternate torsion | Torsion Angle degree | 15° |
|---|---|---|---|---|---|
| Shank tolerance | h8 |
Configura
Proprietà di base
-
blade diameter(mm)
-
Blade thickness(mm)
-
Neck diameter(mm)
-
Neck length(mm)
-
Overall Length(mm)
-
shank diameter(mm)
-
Number of flutes
-
Tipo
- TKCLS
Filtrare per giorni di spedizione standard
-
- Tutti gli articoli
- 6 giorni o meno
Attributi opzionali
- Specifiche e dimensioni di alcuni componenti potrebbero non essere illustrate in modo esauriente. Per i dettagli esatti, consultare i cataloghi dei produttori .
